Graphs

This section covers the definition of a graph, and common families of graphs.

Definition

A graph is a set of points called vertices connected by edges.

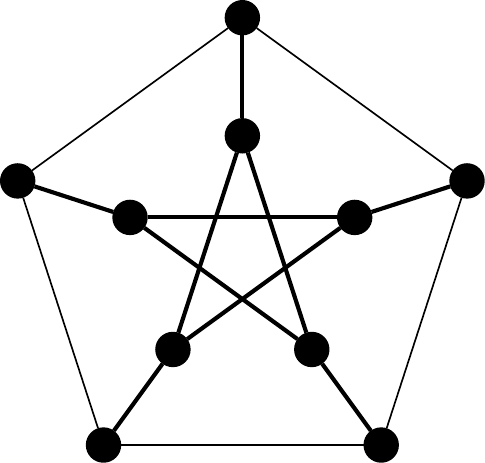

The Petersen Graph, a notable graph in Graph Theory

Definition

A graph G = (V,E) is a mathematical structure consisting of a vertex set V(G) and an edge set E(G). Each edge e in the edge set connects two (not necessarily distinct) vertices known as the endpoints of e.

An edge is said to join its endpoints. Say an edge e connects two vertices u and v. u is said to be adjacent and a neighbor of v.

Example

The vertex and edge sets of the graph G above are

V(G) = \{a,b,c,d\} \quad\quad\quad\quad E(G) = \{ab,ac,ad,bc,bd,cd\}

Notice how we can denote an edge by concatenating its endpoints. This is only possible in cases where exclusively one edge exist between two vertices.

Definition

An edge e can be called

• A proper edge when the edge joins two distinct vertices

• A loop when e joins a vertex to itself

• A multi-edge when two or more edges connect the same two vertices

There are many instances in graph theory where our graphs are both loopless and devoid of multi-edges. In these cases we call the graph simple. If our graph is empty, we call it a null graph. If our graph contains one vertex and no edges, the graph is trivial.

Alternate definition

A more rigourous definition of a graph G will include an incidence function \psi_G that connects vertices to edges.

Definition

A graph G is an ordered pair (V(G),E(G)) where V(G) is a set of vertices and E(G) is a set, disjoint from V(G), of edges, along with an incidence function \psi_G that associates each edge in E(G) an unordered pair of vertices in V(G).

An edge e is said to join its endpoints u,v if \psi_G(e) = \{u,v\}.

Example (Rigourous Graph)

An example of a rigourous graph G is

G = (V(G),E(G))

where

V(G) = \{a,b,c,d,e\}\\ E(G) = \{e_1,e_2,e_3,e_4,e_5,e_6,e_7,e_8\}

and \psi_G conncects

\psi_G(e_1) = \{a,b\}, \psi_G(e_2) = \{a,a\}, \psi_G(e_3) = \{a,c\}, \psi_G(e_4) = \{b,e\}\\ \psi_G(e_5) = \{b,a\}, \psi_G(e_6) = \{c,b\}, \psi_G(e_7) = \{d,d\}, \psi_G(e_8) = \{c,e\}

Common Families of Graphs

Complete Graphs

Definition

A complete graph is a simple graph where there exist an edge between every pair of distinct vertices. A complete graph with n vertices is notated K_n.

(Insert picture of graphs K1 through K5)

Theorem

A complete graph K_n contains \binom{n}{2} edges.

Proof

The graph K_n has an edge between every pair of distinct vertices. Because order doesn’t affect edges (e = uv is equivalent to e = vu), the number of edges is analougous to n choose 2, \binom{n}{2}.

Bipartite Graphs

Definition

A bipartite graph G is a simple graph whose vertex set can be partitioned into two subsets U and V, such that every edge in G has one endpoint in U, and one edpoint in V.

(Insert picture of a few bipartite graphs)

Proposition

A bipartite graph cannot contain any loops.

Proof

If an edge was loop, it would connect the same vertex to both endpoints, which contradicts our definition of a bipartite graph.

Definition

A complete bipartite graph G is a simple bipartite graph such that every vertex in one of the bipartition subsets is joined to every other vertex in the other bipartite subset. A complete bipartite graph is notated K_{m,n} where m is the number of vertices in one of the graphs bipartite set, and n is the number of vertices in the other.

(Example of a complete bipartite graph)

Regular Graphs

To look at regular graphs, we first have to establish the degree of a vertex.

Definition

The degree of a vertex v is a positive integer equal to the number of vertices in the neighborhood of v.

Definition

A k-regular graph is a graph where each vertex has k other vertices in it’s neighborhood.

Example

For example, the Petersen graph is 3-regular, as each vertex in the graph has three other vertices in it’s neighborhood.
